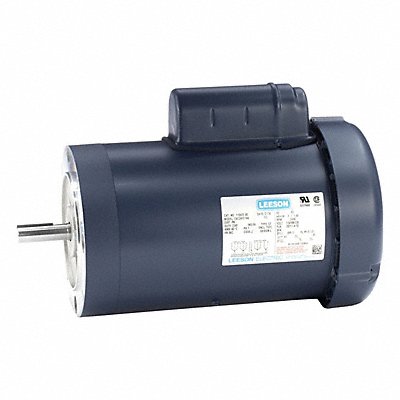

General Purpose Motor 230V Face 110422.00
Manufacturer: LESSON
Jahnda Part Number: 33Q48O
EA
Description
General Purpose Motor Single Phase Motor Design Capacitor-Start 2 hp HP Nameplate RPM 3450 No of Speeds 1 Voltage 115/230V AC Full Load Amps 20.0/10.0 A 56C Frame Usable @ 208V Usable at 208V Usable @ 200V Not Usable at 200V Hz 60 Hz Motor Service Factor 1 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design L Motor Enclosure Design Totally Enclosed Fan Cooled Motor Shaft Rotation CCWSE Motor Mounting Type C-Face
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 43.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | United States |
