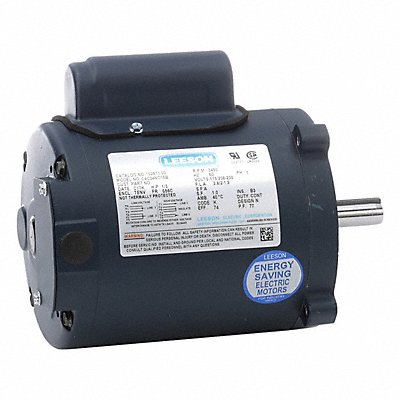

General Purpose Motor 230V Face 102873.00
Manufacturer: LESSON
Jahnda Part Number: 28Q48O
EA
Description
General Purpose Motor Single Phase Motor Design Capacitor-Start 1/3 hp HP Nameplate RPM 3450 No of Speeds 1 Voltage 115/230V AC Full Load Amps 3.8 A 56C Frame Usable @ 208V Usable at 208V Usable @ 200V Not Usable at 200V Hz 60 Hz Motor Service Factor 1 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class B NEMA Design N Motor Enclosure Design Totally Enclosed Non-Ventilated Motor Shaft Rotation CCWSE Motor Mounting Type C-Face
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 18.5 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
