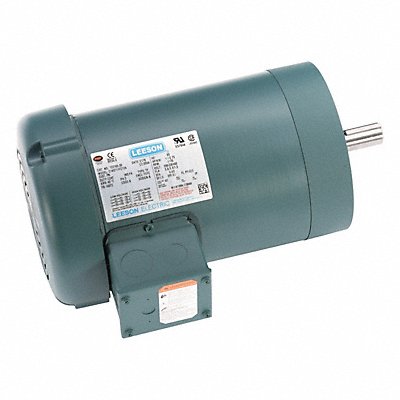

General Purpose Motor 145TC 122165.00
Manufacturer: LESSON
Jahnda Part Number: 58Q48O
EA
Description
General Purpose Motor 3-Phase Totally Enclosed Fan-Cooled Motor Enclosure Design 1 HP Nameplate RPM 1 170 Frame 145TC Voltage 230/460V 60 Hz Hz Three Phase Full Load Amps 1.9 A Face Motor Mounting Type Motor Thermal Protection None Ins. Class F Motor Service Factor 1.15 Ball Motor Bearings Motor Frame Material Rolled Steel Max Ambient Temp 40 Degrees C Reversible Motor Shaft Rotation Nominal Efficiency 82.5 Percent 1170 CE CSA Certified UL Listed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 46.3 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | United States |
