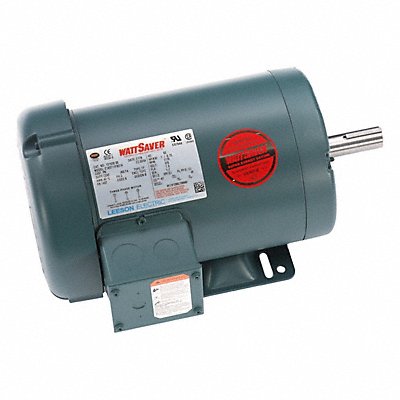

General Purpose Motor 145T 121938.00
Manufacturer: LESSON
Jahnda Part Number: 57Q48O
EA
Description
General Purpose Motor 3-Phase Totally Enclosed Fan-Cooled Motor Enclosure Design 1 HP Nameplate RPM 1 170 Frame 145T Voltage 575V 60 Hz Hz Three Phase Full Load Amps 1.52 A Rigid Base Motor Mounting Type Motor Thermal Protection None Ins. Class F Motor Service Factor 1.25 Ball Motor Bearings Motor Frame Material Rolled Steel Max Ambient Temp 40 Degrees C Reversible Motor Shaft Rotation Nominal Efficiency 82.5 Percent 1170 CE CSA Certified UL Listed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 47.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | United States |
