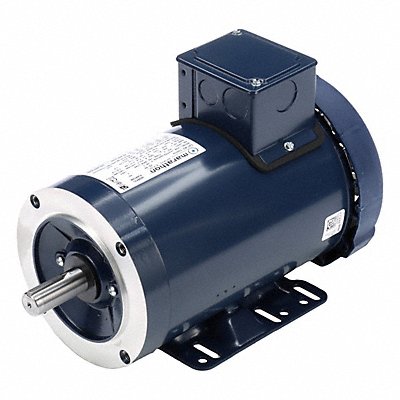

General Purpose Motor 143TC 143TTFR16053
Manufacturer: MARATHON MOTORS
Jahnda Part Number: 93Q48O
EA
Description
General Purpose Motor 3-Phase Totally Enclosed Fan-Cooled Motor Enclosure Design 1 HP Nameplate RPM 1 765 Frame 143TC Voltage 230/460V 60/50 Hz Hz Three Phase Full Load Amps 1.6 A Rigid Base Motor Mounting Type Motor Thermal Protection None Ins. Class F Motor Service Factor 1.15 Ball Motor Bearings Motor Frame Material Rolled Steel Max Ambient Temp 40 Degrees C Reversible Motor Shaft Rotation Nominal Efficiency 84 Percent 1765 CE CSA Certified UL Listed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 43.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
