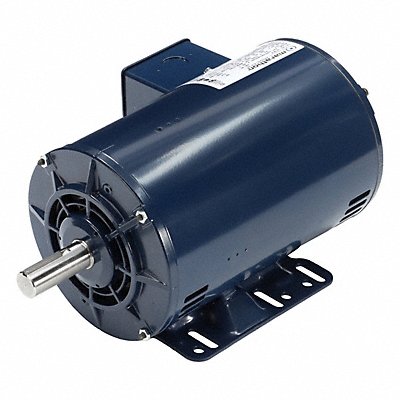

General Purpose Motor 143T

General Purpose Motor 3-Phase Open Dripproof Motor Enclosure Design 1 HP Nameplate RPM 1 760 Frame 143T Voltage 230/460V 60/50 Hz Hz Three Phase Full Load Amps 1.5 A Rigid Base Motor Mounting Type Motor Thermal Protection None Ins. Class F Motor Service Factor 1.15 Ball Motor Bearings Motor Frame Material Rolled Steel Max Ambient Temp 40 Degrees C Reversible Motor Shaft Rotation Nominal Efficiency 85.3 Percent 1760 CE CSA Certified UL Listed Includes Not available
