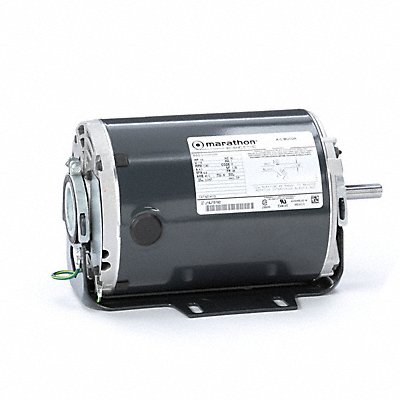

General Purpose Motor 115V 60Hz Single
Manufacturer: MARATHON MOTORS
Jahnda Part Number: 72X38O
EA
Description
General Purpose Motor Single Phase Motor Design Split Phase 1/6 hp HP Nameplate RPM 1 140 No of Speeds 1 Voltage 115V AC Full Load Amps 4.0 A 48 Frame Usable @ 208V Not Usable at 208V Usable @ 200V Not Usable at 200V Hz 60 Hz Motor Service Factor 1.35 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class B Motor Enclosure Design Open Drip Proof Motor Shaft Rotation CW/CCW Motor Mounting Type Cradle Base
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 19.7 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
