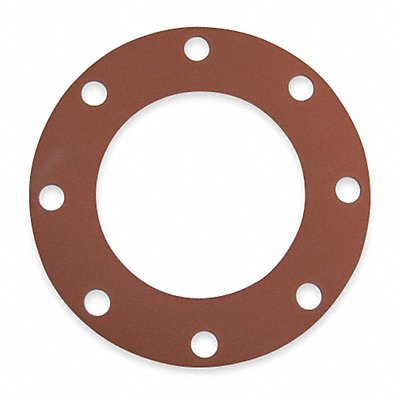

Gasket Full Face 8 In SBR Red
Manufacturer: DRACO MECHANICAL SUPPLY, INC.
Jahnda Part Number: 12H25O
EA
Description
Full Face Flange Gasket Gasket Material SBR Insert Material None For Pipe Size 8 in For Flange ANSI Class 150 Binder Material SBR Color Red Inside Diameter 8 5/8 in Minimum Operating Temperature -20 Degrees F Maximum Operating Temperature 200 Degrees F Outside Diameter 13 1/2 in Thickness 1/8 in Number of Bolt Holes 8 Bolt Hole Diameter 7/8 in Gasket Type Full-Face Gasket Metal Detectable Gasket No Included Fasteners Not Applicable Hardness Shore 75A
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.6 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31181502 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 18 |
| UNSPSC Class | 15 |
| Country of Origin (subject to change) | MULTIPLE |
