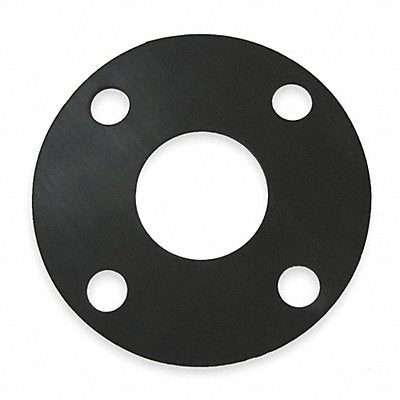

Gasket Full Face 2 1/2 In Neoprene Black
Manufacturer: DRACO MECHANICAL SUPPLY, INC.
Jahnda Part Number: 06N89D
EA
Description
Full Face Flange Gasket Gasket Material Neoprene Insert Material None For Pipe Size 2 1/2 in For Flange ANSI Class 150 Binder Material Neoprene Color Black Inside Diameter 2 7/8 in Minimum Operating Temperature -20 Degrees F Maximum Operating Temperature 190 Degrees F Outside Diameter 7 in Thickness 1/8 in Number of Bolt Holes 4 Bolt Hole Diameter 3/4 in Gasket Type Full-Face Gasket Metal Detectable Gasket No Included Fasteners Not Applicable Hardness Shore 60A
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.16 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31181502 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 18 |
| UNSPSC Class | 15 |
| Country of Origin (subject to change) | MULTIPLE |
