Gasket Full Face 1 1/2 In SBR Red
Manufacturer: DRACO MECHANICAL SUPPLY, INC.
Jahnda Part Number: 06H25O
EA
Description

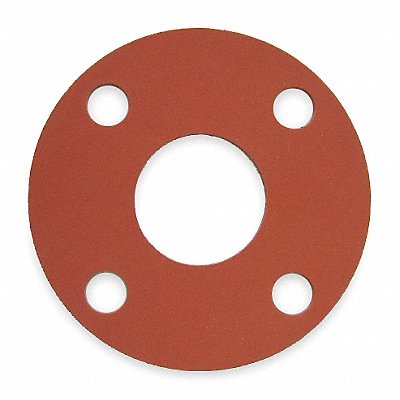

Full Face Flange Gasket Gasket Material SBR Insert Material None For Pipe Size 1 1/2 in For Flange ANSI Class 150 Binder Material SBR Color Red Inside Diameter 1 7/8 in Minimum Operating Temperature -20 Degrees F Maximum Operating Temperature 200 Degrees F Outside Diameter 5 in Thickness 1/8 in Number of Bolt Holes 4 Bolt Hole Diameter 5/8 in Gasket Type Full-Face Gasket Metal Detectable Gasket No Included Fasteners Not Applicable Hardness Shore 75A
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.11 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31181502 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 18 |
| UNSPSC Class | 15 |
| Country of Origin (subject to change) | MULTIPLE |
