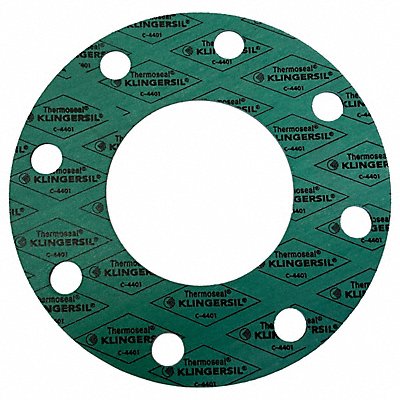

Full Face Flange Gasket 5 in Pipe Size 4401FF-0150-125-0500
Manufacturer: DRACO MECHANICAL SUPPLY, INC.
Jahnda Part Number: 45T08O
EA
Description
Full Face Flange Gasket Gasket Material Aramid Insert Material None For Pipe Size 5 in For Flange ANSI Class 150 Binder Material Buna-N Color Green Inside Diameter 5 9/16 in Minimum Operating Temperature 0 Degrees F Maximum Operating Temperature 750 Degrees F Outside Diameter 10 in Thickness 1/8 in Number of Bolt Holes 8 Bolt Hole Diameter 7/8 in Gasket Type Full-Face Gasket Metal Detectable Gasket No Included Fasteners Not Applicable Hardness Not Rated
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.39 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | MULTIPLE |
