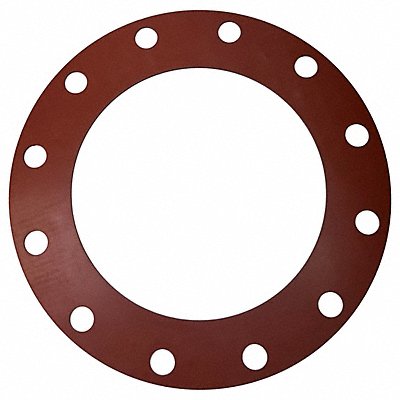

Full Face Flange Gasket 12 in Pipe Size
Manufacturer: DRACO MECHANICAL SUPPLY, INC.
Jahnda Part Number: 81S08O
EA
Description
Full Face Flange Gasket Gasket Material SBR Insert Material None For Pipe Size 12 in For Flange ANSI Class 150 Binder Material SBR Color Red Inside Diameter 12 3/4 in Minimum Operating Temperature -30 Degrees F Maximum Operating Temperature 170 Degrees F Outside Diameter 17 in Thickness 1/8 in Number of Bolt Holes 12 Bolt Hole Diameter 1 in Gasket Type Full-Face Gasket Metal Detectable Gasket No Included Fasteners Not Applicable Hardness 75A Includes Mounting Hardware No
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.85 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | MULTIPLE |
