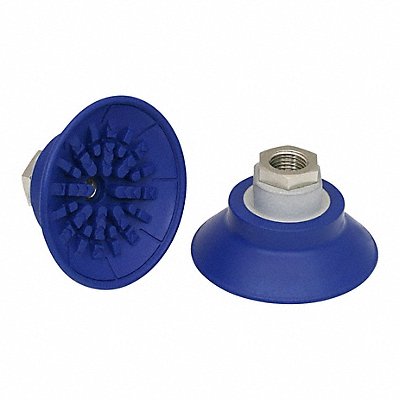

Flat Suction Cup for Sheet handling 10.01.01.10689
Manufacturer: SCHMALZ
Jahnda Part Number: 78F28O
EA
Description
Item Vacuum Pad Assembly Adapter Material Nickel Plated Durometer 60 A For Use With Handling Sheet Metal Maximum Vacuum Pressure -0.6 bar Number of Folds 0 Outside Diameter 60 mm Overall Height 51 mm Pad Color Blue Pad Diameter 67 mm Hardness 60 Shore A Pad Height 36 mm Pad Material NBR Pad Type Flat Port Size 1/4 in Port Type G Series SAF Standards DIN ISO 3302-1 M3 Stroke 6 mm Weight 37.1 g
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.11 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 27131608 |
| UNSPSC Segment | 27 |
| UNSPSC Family | 13 |
| UNSPSC Class | 16 |
| Country of Origin (subject to change) | Germany |
