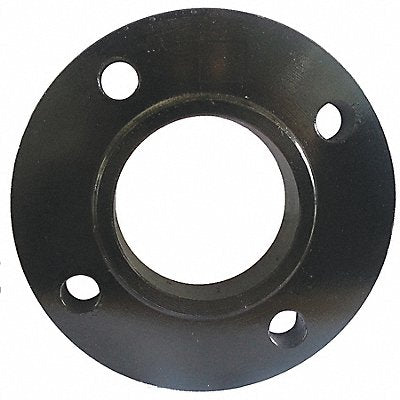

Flanges FLCS1RFSO010
Manufacturer: GUARDIAN WORLDWIDE, LLC
Jahnda Part Number: 98C27O
EA
Description
Flange Raised Face 1 in Nominal Pipe Size Slip-on 4 1/4 in Flange Outside Diameter 1/2 in Flange Thickness 4 1/4 in Overall Length Black Steel Black Anodized A105 Class Class 150 For Pipe Schedule 40 300 psi Maximum Operating Pressure 150 psi @ 300 Degrees F Max Steam Pressure -10-1000 Degrees F Number of Bolt Holes 4 3 1/8 in Bolt Circle Diameter 5/8 in Bolt Hole Diameter
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 2.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | MULTIPLE |
