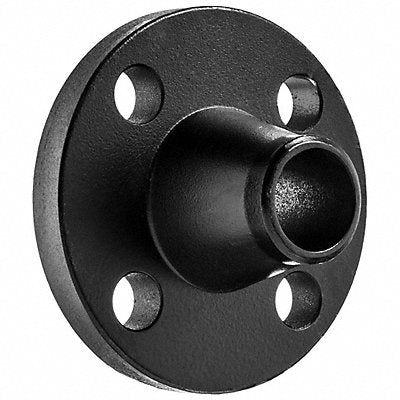

Flange Steel Weld Neck 1/2 in Pipe Size BULK-PF-417
Manufacturer: USA INDUSTRIALS, INC.
Jahnda Part Number: 03P46O
EA
Description
Weld Neck Flange Raised Face 1/2 in Nominal Pipe Size Flanged x Weld Neck 3 3/4 in Flange Outside Diameter 1/2 in Flange Thickness 3 3/4 in Overall Length Steel Black Coated Class Class 600 For Pipe Schedule 80 1 450 psi Maximum Operating Pressure 1 450 psi Max Steam Pressure 80 Degrees to 780 Degrees F Number of Bolt Holes 4 1/2 in Bolt Hole Diameter
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1.16 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 40141734 |
| UNSPSC Segment | 40 |
| UNSPSC Family | 14 |
| UNSPSC Class | 17 |
| Country of Origin (subject to change) | China |
