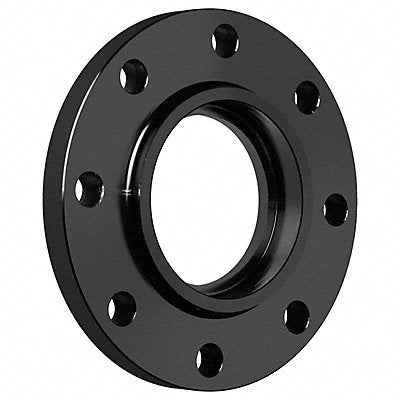

Flange Steel Socket Weld 4 Pipe Size BULK-PF-529
Manufacturer: USA INDUSTRIALS, INC.
Jahnda Part Number: 65O46O
EA
Description
Socket Weld Flange Raised Face 4 in Nominal Pipe Size Flanged x Socket Weld 10 in Flange Outside Diameter 1 3/16 in Flange Thickness 10 in Overall Length Steel Black Coated Class Class 300 For Pipe Schedule 80 725 psi Maximum Operating Pressure 725 psi Max Steam Pressure 80 Degrees to 780 Degrees F Number of Bolt Holes 8 3/4 in Bolt Hole Diameter
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 22.2 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 40141734 |
| UNSPSC Segment | 40 |
| UNSPSC Family | 14 |
| UNSPSC Class | 17 |
| Country of Origin (subject to change) | China |
