Flange Steel Socket Weld 2 1/2 Pipe Size BULK-PF-432
Manufacturer: USA INDUSTRIALS, INC.
Jahnda Part Number: 25P46O
EA
Description

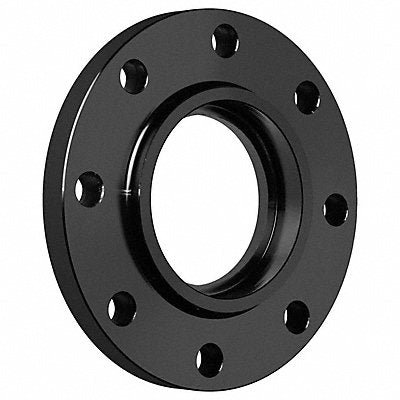

Socket Weld Flange Raised Face 2 1/2 in Nominal Pipe Size Flanged x Socket Weld 7 1/2 in Flange Outside Diameter 1 1/16 in Flange Thickness 7 1/2 in Overall Length Steel Black Coated Class Class 600 For Pipe Schedule 80 1 450 psi Maximum Operating Pressure 1 450 psi Max Steam Pressure 80 Degrees to 780 Degrees F Number of Bolt Holes 8 3/4 in Bolt Hole Diameter
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1.18 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 40141734 |
| UNSPSC Segment | 40 |
| UNSPSC Family | 14 |
| UNSPSC Class | 17 |
| Country of Origin (subject to change) | China |
