Flange Steel 2 1/2 Pipe Size Class 150
Manufacturer: GUARDIAN WORLDWIDE, LLC
Jahnda Part Number: 02S75O
EA
Description

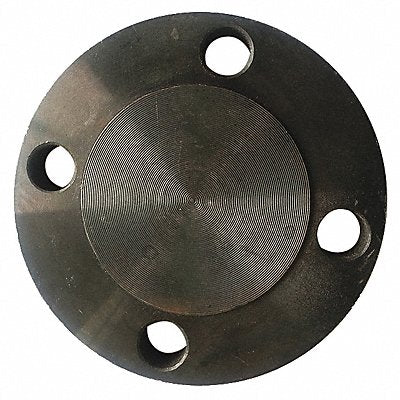

Blind Flange Raised Face 2 1/2 in Nominal Pipe Size Flanged x Blind 7 in Flange Outside Diameter 13/16 in Flange Thickness Steel Anodized Class Class 150 For Pipe Schedule 40 150 psi Maximum Operating Pressure -29 Degrees to 425 Degrees F Number of Bolt Holes 4 3/4 in Bolt Circle Diameter 5/8 in Bolt Hole Diameter
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 8.87 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 40142403 |
| UNSPSC Segment | 40 |
| UNSPSC Family | 14 |
| UNSPSC Class | 24 |
| Country of Origin (subject to change) | MULTIPLE |
