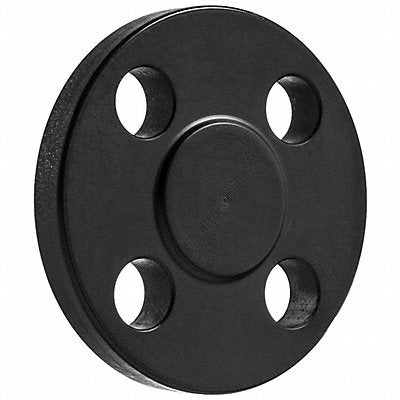

Flange Steel 1 1/4 Pipe Size Class 600
Manufacturer: USA INDUSTRIALS, INC.
Jahnda Part Number: 96O46O
EA
Description
Blind Flange Raised Face 1 1/4 in Nominal Pipe Size Flanged x Blind 5 1/4 in Flange Outside Diameter 3/4 in Flange Thickness 5 1/4 in Overall Length Steel Black Coated Class Class 600 For Pipe Schedule 80 1 450 psi Maximum Operating Pressure 1 450 psi Max Steam Pressure 80 Degrees to 780 Degrees F Number of Bolt Holes 4 5/8 in Bolt Hole Diameter
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1.19 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 40141734 |
| UNSPSC Segment | 40 |
| UNSPSC Family | 14 |
| UNSPSC Class | 17 |
| Country of Origin (subject to change) | China |
