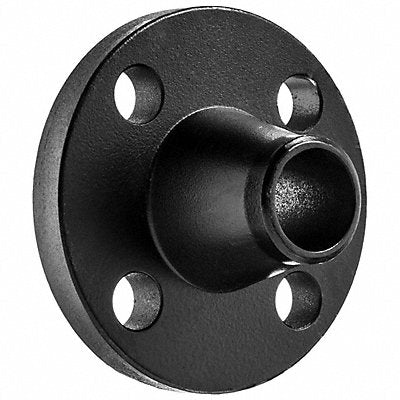

Flange Steel 1 1/2 Pipe Size Weld Neck
Manufacturer: USA INDUSTRIALS, INC.
Jahnda Part Number: 20O46O
EA
Description
Weld Neck Flange Raised Face 1 1/2 in Nominal Pipe Size Flanged x Weld Neck 7 in Flange Outside Diameter 1 1/4 in Flange Thickness 7 in Overall Length Steel Black Coated Class Class 1500 For Pipe Schedule XXH 3 600 psi Maximum Operating Pressure 3 600 psi Max Steam Pressure 80 Degrees to 780 Degrees F Number of Bolt Holes 4 1 in Bolt Hole Diameter
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1.21 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 40141734 |
| UNSPSC Segment | 40 |
| UNSPSC Family | 14 |
| UNSPSC Class | 17 |
| Country of Origin (subject to change) | China |
