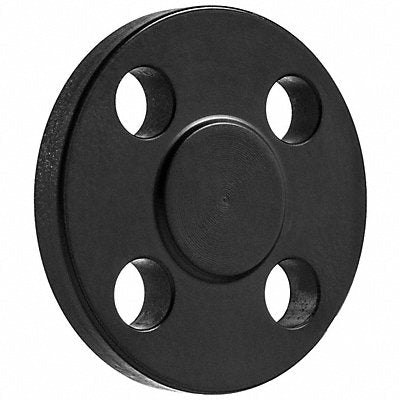

Flange Steel 1 1/2 Pipe Size Class 300
Manufacturer: USA INDUSTRIALS, INC.
Jahnda Part Number: 27O46O
EA
Description
Blind Flange Raised Face 1 1/2 in Nominal Pipe Size Flanged x Blind 6 1/8 in Flange Outside Diameter 3/4 in Flange Thickness 6 1/8 in Overall Length Steel Black Coated Class Class 300 For Pipe Schedule 80 725 psi Maximum Operating Pressure 725 psi Max Steam Pressure 80 Degrees to 780 Degrees F Number of Bolt Holes 4 3/4 in Bolt Hole Diameter
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 5.77 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 40141734 |
| UNSPSC Segment | 40 |
| UNSPSC Family | 14 |
| UNSPSC Class | 17 |
| Country of Origin (subject to change) | China |
