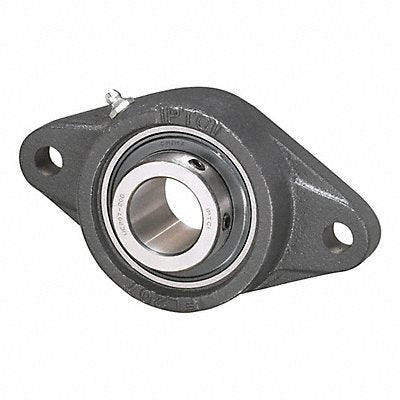

Flange Mount Bearings HUCFL205-14
Manufacturer: IPTCI BEARINGS
Jahnda Part Number: 49O39O
EA
Description
Flange Mount Bearings Back Side to Center Width 0.875 in Bearing Insert Type Radial Ball Bore Diameter 7/8 in Expansion Type Fixed For Environment Extreme High Temperature Housing Type Flange Bracket Included Bearing HUCF 205-14 Maximum Temperature 450 Degrees F Minimum Temperature -45 Degrees F Number of Mount Holes 2 Overall Height 2 11/16 in Overall Length 5 1/8 in Overall Width 1 15/32 in Seal Type B-Type Shaft Locking Type Set Screws System of Measurement Inch
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1.5 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | China |
