Flange Gasket Spiral Wound Type 6 Size BULK-FG-3109
Manufacturer: USA INDUSTRIALS, INC.
Jahnda Part Number: 89B86O
EA
Description

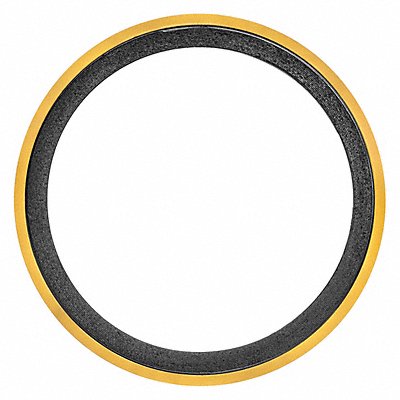

Spiral Wound Flange Gasket For Flange ANSI Class 1 500 For Pipe Size 6 in Inside Diameter 6 3/4 in Outside Diameter 11 1/8 in Thickness 3/16 in Filler Material Graphite Outer Ring Material Carbon Steel Minimum Operating Temperature -300 Degrees F Maximum Operating Temperature 1 200 Degrees F Spiral Winding Material Stainless Steel Spiral Winding Stainless Steel Grade 304 Inner Ring Stainless Steel Grade Not Applicable Standards ASME B16.21 Resistance Properties Chemical-Resistant
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 2.2 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31181503 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 18 |
| UNSPSC Class | 15 |
| Country of Origin (subject to change) | China |
