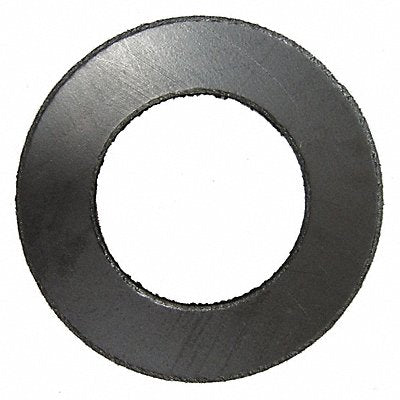

Flange Gasket Ring 5 In Graphite
Manufacturer: DRACO MECHANICAL SUPPLY, INC.
Jahnda Part Number: 76R30D
EA
Description
Ring Flange Gasket Gasket Material Graphite Insert Material 316 Stainless Steel For Pipe Size 5 in For Flange ANSI Class 150 Binder Material None Color Black Inside Diameter 5 9/16 in Minimum Operating Temperature -400 Degrees F Maximum Operating Temperature 850 Degrees F Outside Diameter 7 3/4 in Thickness 1/16 in Gasket Type Ring Gasket Metal Detectable Gasket No Included Fasteners Not Applicable Hardness Not Rated Includes Mounting Hardware No X-Ray Detectable No
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.08 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31181502 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 18 |
| UNSPSC Class | 15 |
| Country of Origin (subject to change) | China |
