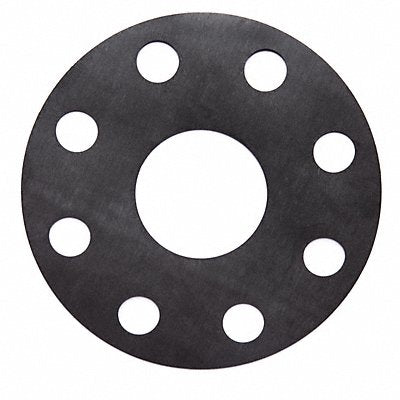

Flange Gasket Full Face Type 6 Size BULK-FG-442
Manufacturer: USA INDUSTRIALS, INC.
Jahnda Part Number: 30Y76O
EA
Description
Full Face Flange Gasket Gasket Material FKM Insert Material Not Applicable For Pipe Size 6 in For Flange ANSI Class 150 Color Black Inside Diameter 6 5/8 in Minimum Operating Temperature -20 Degrees F Maximum Operating Temperature 450 Degrees F Outside Diameter 11 in Thickness 1/8 in Number of Bolt Holes 8 Bolt Hole Diameter 7/8 in Gasket Type Full-Face Gasket Metal Detectable Gasket No Hardness Not Rated Includes Mounting Hardware No For Fluid Type Chemicals
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.6 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31181502 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 18 |
| UNSPSC Class | 15 |
| Country of Origin (subject to change) | China |
