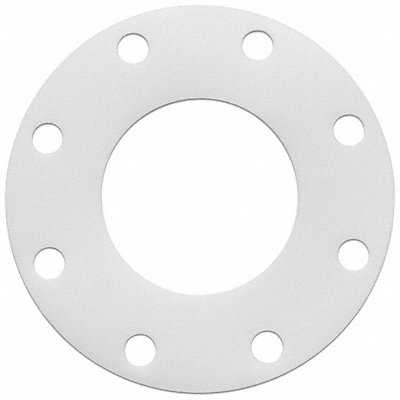

Flange Gasket Full Face Type 3 Size BULK-FG-1955
Manufacturer: USA INDUSTRIALS, INC.
Jahnda Part Number: 33B86O
EA
Description
Full Face Flange Gasket Gasket Material ePTFE Insert Material None For Pipe Size 3 in For Flange ANSI Class 300 Binder Material None Color White Inside Diameter 3 1/2 in Minimum Operating Temperature -450 Degrees F Maximum Operating Temperature 600 Degrees F Outside Diameter 8 1/4 in Thickness 1/8 in Number of Bolt Holes 8 Bolt Hole Diameter 7/8 in Gasket Type Full-Face Gasket Metal Detectable Gasket No Included Fasteners Not Applicable Hardness Not Rated
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.2 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31181512 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 18 |
| UNSPSC Class | 15 |
| Country of Origin (subject to change) | China |
