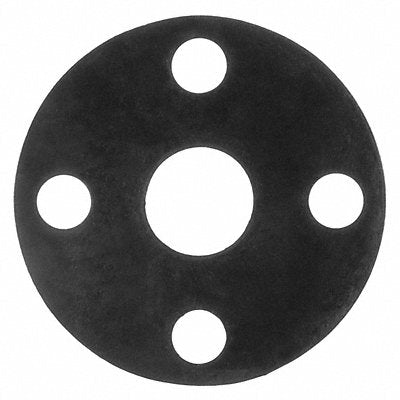

Flange Gasket Full Face Type 2 1/2 Size BULK-FG-413
Manufacturer: USA INDUSTRIALS, INC.
Jahnda Part Number: 17Y76O
EA
Description
Full Face Flange Gasket Gasket Material FKM Insert Material None For Pipe Size 2 1/2 in For Flange ANSI Class 150 Binder Material None Color Black Inside Diameter 2 7/8 in Minimum Operating Temperature -20 Degrees F Maximum Operating Temperature 450 Degrees F Outside Diameter 7 in Thickness 1/16 in Number of Bolt Holes 4 Bolt Hole Diameter 3/4 in Gasket Type Full-Face Gasket Metal Detectable Gasket No Included Fasteners Not Applicable Hardness Not Rated
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.15 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31181502 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 18 |
| UNSPSC Class | 15 |
| Country of Origin (subject to change) | China |
