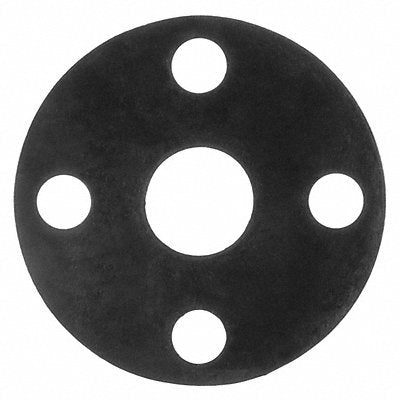

Flange Gasket Full Face Type 12 Size BULK-FG-423
Manufacturer: USA INDUSTRIALS, INC.
Jahnda Part Number: 23Y76O
EA
Description
Full Face Flange Gasket Gasket Material FKM Insert Material None For Pipe Size 12 in For Flange ANSI Class 150 Binder Material None Color Black Inside Diameter 12 3/4 in Minimum Operating Temperature -20 Degrees F Maximum Operating Temperature 450 Degrees F Outside Diameter 19 in Thickness 1/16 in Number of Bolt Holes 12 Bolt Hole Diameter 1 in Gasket Type Full-Face Gasket Metal Detectable Gasket No Included Fasteners Not Applicable Hardness Not Rated
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.9 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31181502 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 18 |
| UNSPSC Class | 15 |
| Country of Origin (subject to change) | China |
