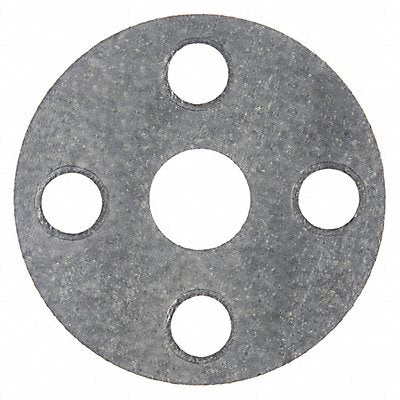

Flange Gasket Full Face Type 1 Size BULK-FG-1697
Manufacturer: USA INDUSTRIALS, INC.
Jahnda Part Number: 82A86O
EA
Description
Full Face Flange Gasket Gasket Material Graphite Insert Material None For Pipe Size 1 in For Flange ANSI Class 150 Binder Material None Color Gray Inside Diameter 1 5/16 in Minimum Operating Temperature -400 Degrees F Maximum Operating Temperature 975 Degrees F Outside Diameter 4 1/4 in Thickness 1/16 in Number of Bolt Holes 4 Bolt Hole Diameter 5/8 in Gasket Type Full-Face Gasket Metal Detectable Gasket No Included Fasteners Not Applicable Hardness Not Rated
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.1 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31181503 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 18 |
| UNSPSC Class | 15 |
| Country of Origin (subject to change) | United States |
