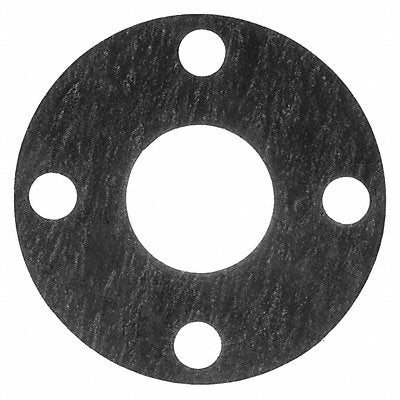

Flange Gasket Full Face 3 Pipe BULK-FG-5157
Manufacturer: USA INDUSTRIALS, INC.
Jahnda Part Number: 51J06O
EA
Description
Full Face Flange Gasket Gasket Material Aramid Insert Material None For Pipe Size 3 in For Flange ANSI Class 150 Binder Material Neoprene Color Gray Inside Diameter 3 1/2 in Minimum Operating Temperature -100 Degrees F Maximum Operating Temperature 400 Degrees F Outside Diameter 7 1/2 in Thickness 1/8 in Number of Bolt Holes 4 Bolt Hole Diameter 3/4 in Gasket Type Full-Face Gasket Metal Detectable Gasket No Included Fasteners Not Applicable Hardness Not Rated
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.26 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31181512 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 18 |
| UNSPSC Class | 15 |
| Country of Origin (subject to change) | United States |
