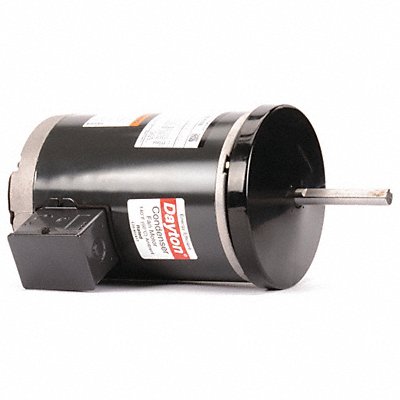

Fan Mtr 1 HP 1140 220-230/460
Manufacturer: DAYTON
Jahnda Part Number: 25R08A
EA
Description
Condenser Fan Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 140 No of Speeds 1 Voltage 200-230/460V AC 4.3-4.6/2.3 A Full Load Amps 56Z Frame 60 Hz Hz Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class B Duty Cycle Continuous Max Ambient Temp 60 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Air-Over Motor Mounting Type Band Inverter Rated Yes Motor Mounting Position Horizontal or Vertical Shaft Up Shaft Length 4 3/4 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 39.25 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101602 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | Mexico |
