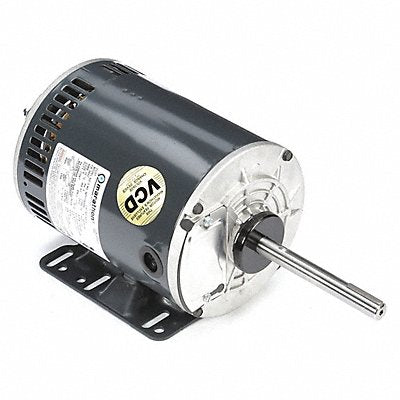

Fan Motor 1 HP 1140 rpm 60/50Hz
Manufacturer: MARATHON MOTORS
Jahnda Part Number: 46N72B
EA
Description
Condenser Fan Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 140 No of Speeds 1 Voltage 208-230/460V AC 4.1-4.2/2.1 A Full Load Amps 56HZ Frame Output Watts 750 W 60/50 Hz Hz Usable @ 208V Yes Usable @ 200V No Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class H Duty Cycle Continuous Max Ambient Temp 70 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Air-Over Motor Mounting Type Band/Stud Motor Frame Material Steel
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 28.95 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101612 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | Mexico |
