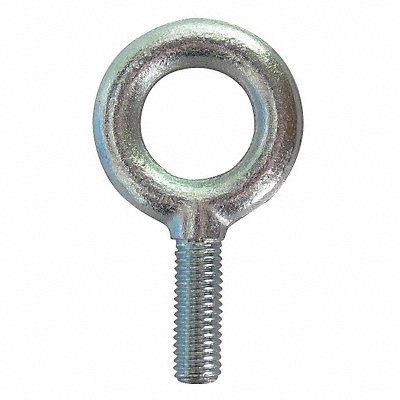

Eye BoltHole Center-to-End L 5 3/32 in
Manufacturer: APPROVED VENDOR
Jahnda Part Number: 85T70O
EA
Description
Eye Bolt Dimensional Standards ASME B18.15 Eye Inside Diameter 1 in Eye Outside Diameter 1 11/16 in Eye Thickness 3/8 in Zinc Plated Steel Material Quality Standards ASTM A489 REACH Compliant No Hole Center-to-End Length 5 3/32 in RoHS Compliant No Shank Diameter 3/8 in Thread Style Fully Threaded UNC Thread Direction Right Hand Thread Length 4 7/16 in Thread Size 3/8 In.-16 Shank Length 2 1/2 in Externally Threaded Shoulder Style Without Shoulder System of Measurement Inch
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.2 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31161610 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 3116 |
| UNSPSC Class | 311616 |
| Country of Origin (subject to change) | China |
