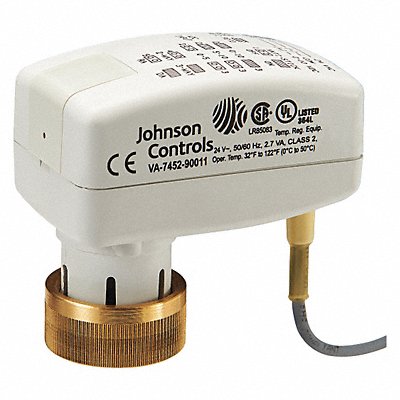

Electric Valve Actuator Proportional 24V
Manufacturer: JOHNSON CONTROLS
Jahnda Part Number: 50R82A
EA
Description
Electric Ball Valve Actuator Voltage 24 Signal Type Proportional Torque 21.5 in-lb Cycle Time 65 sec Ambient Temp Range 35 Degrees to 122 Degrees F Type of Actuator Non-Spring Return Stroke Deg 13/64 Height 2 3/4 in Width 1 13/16 in Depth 2 29/32 in Electrical Connections Cable Power Consumption 7 VA Enclosure Rating NEMA 1 Direct Mount Mounting For Use With VG4000 or VG5000 Series Zone Valves Standards CE UL
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.7 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31251505 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 3125 |
| UNSPSC Class | 312515 |
| Country of Origin (subject to change) | Italy |
