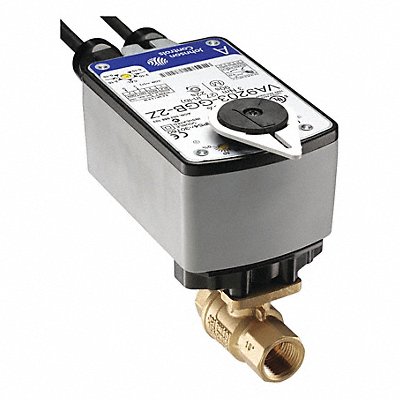

Electric Valve Actuator On-Off 85-264V
Manufacturer: JOHNSON CONTROLS
Jahnda Part Number: 55R82A
EA
Description
Electric Ball Valve Actuator Voltage 85-264 Signal Type On-Off Torque 27 in-lb Cycle Time 75 sec Ambient Temp Range -22 Degrees to 140 Degrees F Type of Actuator Spring Return Stroke Deg 95 Height 3 13/32 in Width 3 5/16 in Depth 4 13/16 in Auxiliary Switch Type SPDT Electrical Connections Cable Power Consumption 7.2 VA Enclosure Rating NEMA 2 Direct Mount Mounting For Use With JCI VG1000 Ball Valve Includes Factory Mounted Valve Linkage Standards C-Tick CE UL
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 2.75 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31251505 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 3125 |
| UNSPSC Class | 312515 |
| Country of Origin (subject to change) | Mexico |
