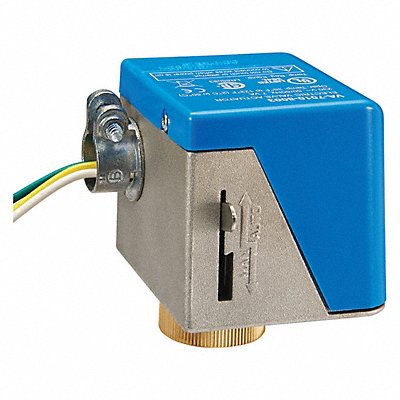

Electric Valve Actuator On-Off 24V
Manufacturer: JOHNSON CONTROLS
Jahnda Part Number: 47R82A
EA
Description
Electric Ball Valve Actuator Voltage 24 Signal Type On-Off Torque 20.2 in-lb Cycle Time 10 sec Ambient Temp Range 35 Degrees to 122 Degrees F Type of Actuator Non-Spring Return Stroke Deg 1/8 Height 2 29/32 in Width 2 29/32 in Depth 2 5/8 in Electrical Connections 20 in Wire Power Consumption 7 VA Enclosure Rating NEMA 1 Direct Mount Mounting For Use With VG5000 valves Standards CE UL
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 1.25 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31251505 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 3125 |
| UNSPSC Class | 312515 |
| Country of Origin (subject to change) | Mexico |
