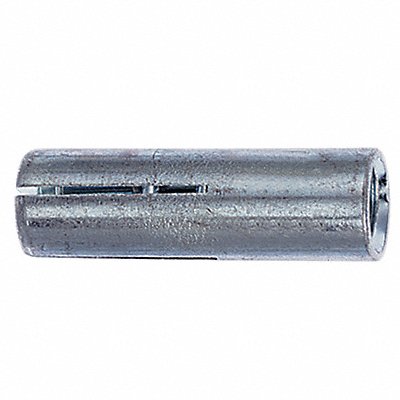

Drop-In Anchor 1/4-20x1in PK100
Manufacturer: RED HEAD
Jahnda Part Number: 25U95A
PK
Description
Drop-In Anchor Anchor Diameter 3/8 in Overall Length 1 in Thread Size 1/4 In.-20 Thread Depth 0.375 in Thread Type Coarse Material Steel Finish Zinc Plated Flange Style Flush Drill Bit Size 3/8 in Minimum Hole Depth 1 in Ultimate Shear Strength (4 000 psi Concrete) 1 080 lb Maximum Ultimate Shear Strength 1 080 lb Ultimate Tension Strength (4 000 psi Concrete) 2 360 lb Maximum Ultimate Tension Strength 2 980 lb System of Measurement Inch Bolt or Rod Size 1/4 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 2.5 lb |
| Items per Unit of Issue | 100 |
| UNSPSC | 31162101 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 3116 |
| UNSPSC Class | 311621 |
| Country of Origin (subject to change) | Taiwan |
