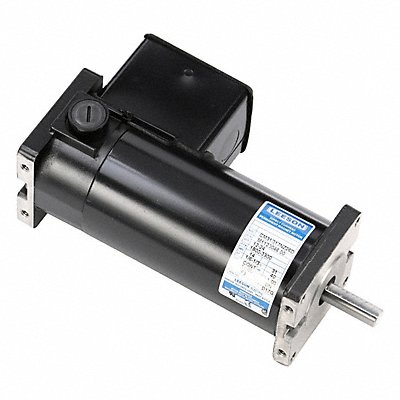

DC Permanent Magnet Motor 14.0 A
Manufacturer: LESSON
Jahnda Part Number: 86N48O
EA
Description
DC Permanent Magnet Motor Not Applicable Phase Motor Design Permanent Magnet DC 1/3 HP Nameplate RPM 3 900/1 800 Voltage 12/24V DC 14.0 A Full Load Amps 31 Frame Motor Service Factor 1 Motor Thermal Protection None Ins. Class F Max Ambient Temp 104 Degrees F Motor Shaft Rotation CW/CCW Duty Cycle Continuous Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Square Flange Shaft Dia 1/2 in Motor Bearings Ball Shaft Length 1 1/2 in Brush Type External
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 10.65 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | United States |
