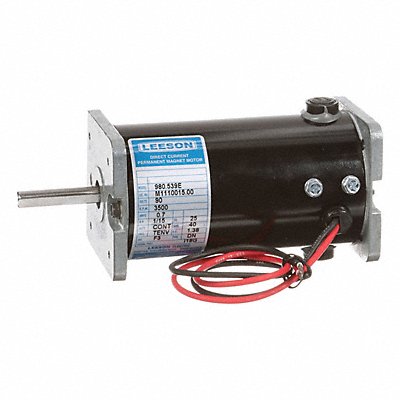

DC Permanent Magnet Motor 0.70 A M1110015.00
Manufacturer: LESSON
Jahnda Part Number: 85N48O
EA
Description
DC Permanent Magnet Motor Not Applicable Phase Motor Design Permanent Magnet DC 1/15 HP Nameplate RPM 3 500 Voltage 90V DC 0.70 A Full Load Amps 25 Frame Motor Service Factor 1 Motor Thermal Protection None Ins. Class F Max Ambient Temp 104 Degrees F Motor Shaft Rotation CW/CCW Duty Cycle Continuous Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Square Flange Shaft Dia 5/16 in Motor Bearings Ball Shaft Length 1 1/2 in Brush Type External
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 5.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | United States |
