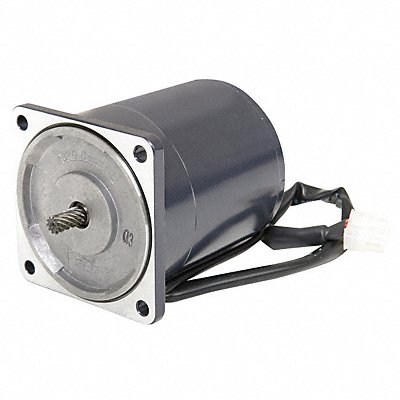

DC Motor PM TENV 1/30 HP 2850 rpm 24VDC
Manufacturer: DAYTON
Jahnda Part Number: 65D00K
EA
Description
DC Gearmotor Component Motor DC Permanent Magnet Totally Enclosed Nonventilated 1/30 HP Nameplate RPM 2 850 Voltage 24V DC Full Load Amps 1.7 A Full Load Torque 0.738 in-lb NEMA/IEC Frame 80 Face Motor Mounting Type Motor Thermal Protection None Ins. Class B Ball Motor Bearings Max Ambient Temp 40 Degrees C CW/CCW Motor Shaft Rotation Length Less Shaft 4 3/4 in Shaft Dia 5/16 in Shaft Length 9/16 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 5.0 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101603 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | South Korea |
