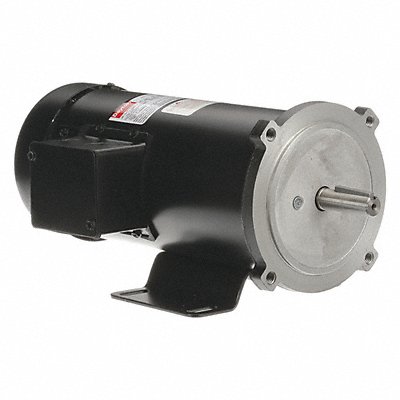

DC Motor 3/4 HP 1725 rpm 90V DC 56C TEFC
Manufacturer: DAYTON
Jahnda Part Number: 40C36A
EA
Description
DC Permanent Magnet Motor Motor Design Permanent Magnet DC 3/4 HP Nameplate RPM 1 725 Voltage 90V DC 7.6 A Full Load Amps 56C Frame Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face/Base Removable Base Yes Shaft Dia 5/8 in Motor Bearings Ball Shaft Length 1 7/8 in Motor Shaft Design Keyed Overall Length 13 13/16 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 30.15 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101603 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | United States |
