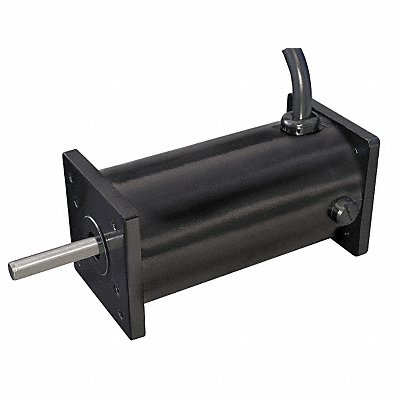

DC Motor 1/27 HP 1800 rpm 90V
Manufacturer: DAYTON
Jahnda Part Number: 39T24B
EA
Description
DC Permanent Magnet Motor Motor Design Permanent Magnet DC 1/27 HP Nameplate RPM 1 800 Voltage 90V DC 0.50 A Full Load Amps Non-Standard Frame Full Load Torque 1.3 in-lb Motor Thermal Protection None Ins. Class B Max Ambient Temp 40 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Nonventilated Motor Mounting Type Face/Base Shaft Dia 5/16 in Motor Bearings Ball Shaft Length 1 1/2 in Brush Type External Overall Length 6 7/16 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 4.0 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101603 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | United States |
