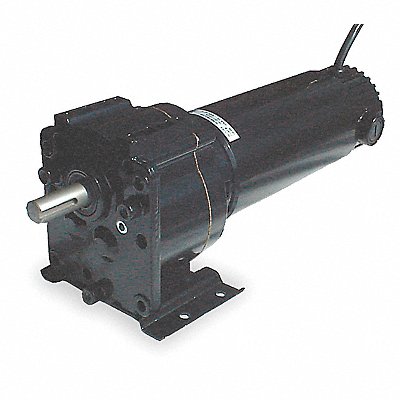

DC Gearmotor 165 rpm 90V TENV
Manufacturer: DAYTON
Jahnda Part Number: 71G06A
EA
Description
DC Gearmotor Shaft Orientation Parallel Motor Enclosure Totally Enclosed Nonventilated Operating Voltage 90V DC Motor Type Permanent Magnet DC Nameplate Speed 165 RPM Maximum Torque 90 in-lb Overhung Load Capacity 200 ft-lb Rotation CW/CCW Mounting Orientation Any Angle Gear Ratio 11 1 Input Horsepower 1/4 hp Output Shaft Diameter 5/8 in Bearing Type Ball on Motor Needle Throughout
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 19.25 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101603 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | United States |
