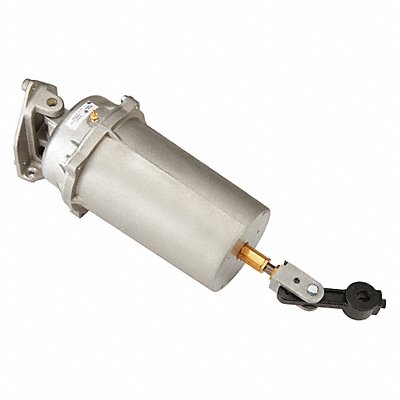

Damper Actuator 813Spring W/Swivel
Manufacturer: JOHNSON CONTROLS
Jahnda Part Number: 34R82A
EA
Description
Pneumatic Damper Actuator Operating PSI Range 0 to 25 Max Air Pressure 25 psi Stroke 6 in Nominal Spring Range 8 to 13 psi Mounting Type Pivot Net Force Exerted @ 0 PSI 491 Net Force Exerted @ 18 PSI 1 835 Length 15 3/4 in Width 12 in Height 28 in Provides Gradual or Positive Actuation of large Dampers For Use With Dampers Includes Swivel Mount Bracket Clevis And Crank Arm
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 23.45 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31251504 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 3125 |
| UNSPSC Class | 312515 |
| Country of Origin (subject to change) | Mexico |
