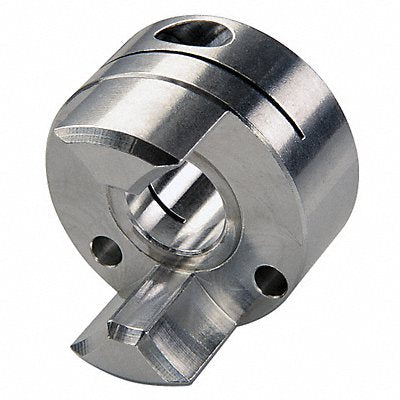

Curved Jaw Coupling Hub 9mm Aluminum
Manufacturer: RULAND MANUFACTURING
Jahnda Part Number: 81X57A
EA
Description
Jaw Coupling Hub Coupling Size MJC33 Outside Diameter 33.3 mm Coupling Overall Length 44.5 mm System of Measurement Metric Hub Material Aluminum Maximum Speed 8 000 RPM Keyway Depth Not Applicable Keyway Width Not Applicable Bore Diameter 9 mm Shaft Locking Type Clamp On Bore Type Round Bore Jaw Profile Curved Screw Thread Size M3 Bore Tolerance +0.05/-0.00 mm Fail Safe Yes Shaft Tolerance +0.000/-0.013 mm Full Bearing Support Required Yes Hub Diameter 33.3 mm
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.09 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31163003 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 3116 |
| UNSPSC Class | 311630 |
| Country of Origin (subject to change) | United States |
