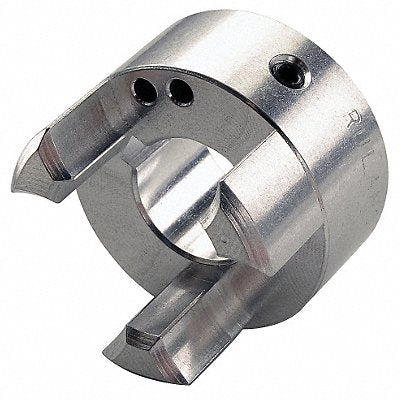

Curved Jaw Coupling Hub 14mm Aluminum
Manufacturer: RULAND MANUFACTURING
Jahnda Part Number: 49Y57A
EA
Description
Jaw Coupling Hub Coupling Size MJS51 Outside Diameter 50.8 mm Coupling Overall Length 61 mm System of Measurement Metric Hub Material Aluminum Maximum Speed 8 000 RPM Keyway Depth 2.3 mm Keyway Width 5 mm Bore Diameter 14 mm Shaft Locking Type Set Screw Bore Type Round Bore with Keyway Jaw Profile Curved Screw Thread Size M6 Bore Tolerance +0.05/-0.00 mm Fail Safe Yes Shaft Tolerance +0.000/-0.013 mm Full Bearing Support Required Yes Hub Diameter 50.8 mm
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.29 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31163003 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 3116 |
| UNSPSC Class | 311630 |
| Country of Origin (subject to change) | United States |
