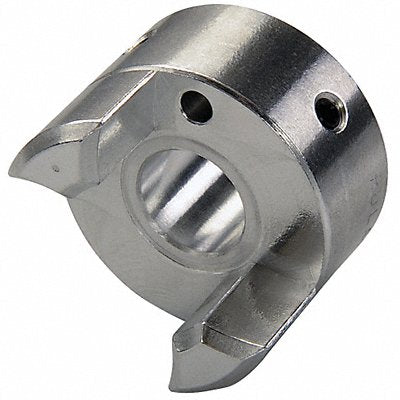

Curved Jaw Coupling Hub 12mm Aluminum
Manufacturer: RULAND MANUFACTURING
Jahnda Part Number: 19Y57A
EA
Description
Jaw Coupling Hub Coupling Size MJS25 Outside Diameter 25.4 mm Coupling Overall Length 35.3 mm System of Measurement Metric Hub Material Aluminum Maximum Speed 8 000 RPM Keyway Depth Not Applicable Keyway Width Not Applicable Bore Diameter 12 mm Shaft Locking Type Set Screw Bore Type Round Bore Jaw Profile Curved Screw Thread Size M4 Bore Tolerance +0.05/-0.00 mm Fail Safe Yes Shaft Tolerance +0.000/-0.013 mm Full Bearing Support Required Yes Hub Diameter 25.4 mm
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 0.04 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 31163003 |
| UNSPSC Segment | 31 |
| UNSPSC Family | 3116 |
| UNSPSC Class | 311630 |
| Country of Origin (subject to change) | United States |
