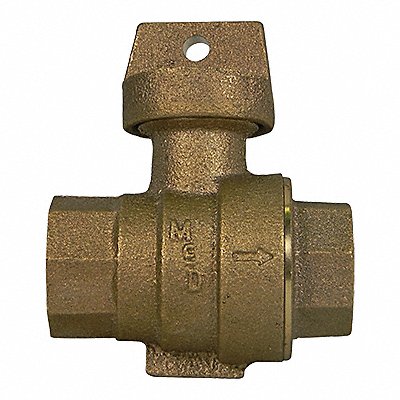

Curb Stop Valve 76001 3/4"
Manufacturer: A.Y. MCDONALD
Jahnda Part Number: 37I38O
EA
Description
Stop and Waste Valve Body Material Brass Pipe Connection Type FNPT x FNPT Pipe Size 3/4 in Overall Length 3.51 in Maximum Operating Pressure 150 psig Max Media Temperature 180 Degrees F Handle Type Tee Handle Material Brass Standards ASTM B584 ASTM B62 NSF/ANSI 372 NSF/ANSI 61 Product Type Stop and Drain Ball Curb Top of Handle to Inlet Center 2.42 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 21.0 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 40141609 |
| UNSPSC Segment | 40 |
| UNSPSC Family | 14 |
| UNSPSC Class | 16 |
| Country of Origin (subject to change) | United States |
