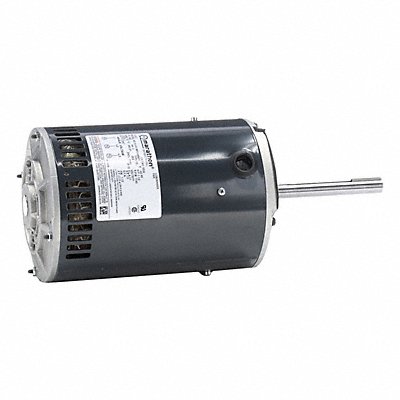

Condenser Fan Motor 575V AC 056T11O5307
Manufacturer: MARATHON MOTORS
Jahnda Part Number: 98O48O
EA
Description
Condenser Fan Motor Motor Design 3-Phase Phase Three 1 1/2 HP No of Speeds 1 Voltage 575V AC Motor Shaft Rotation CW/CCW 56Z Frame Motor Enclosure Design Open Air-Over Band Motor Mounting Type Motor Mounting Position Horizontal Shaft Dia 5/8 in Shaft Length 5 1/16 in Motor Thermal Protection Auto Max Ambient Temp 70 Degrees C Nameplate RPM 1 140 HVAC/R 60 Hz Full Load Amps 2.2 A Ins. Class H Motor Service Factor 1 Motor Bearings Ball Overall Length 15 11/16 in
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 37.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
