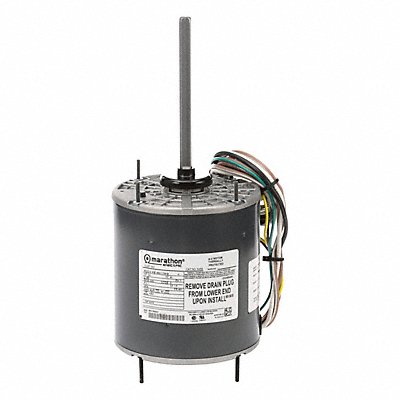

Condenser Fan Motor 460V AC 048A11T581
Manufacturer: MARATHON MOTORS
Jahnda Part Number: 65O48O
EA
Description
Condenser Fan Motor Motor Design Permanent Split Capacitor Phase Single 3/4 HP No of Speeds 1 Voltage 460V AC Motor Shaft Rotation CCW 48Y Frame Motor Enclosure Design Totally Enclosed Air-Over Stud Motor Mounting Type Motor Mounting Position Horizontal Shaft Dia 1/2 in Shaft Length 6 1/16 in Motor Thermal Protection Auto Max Ambient Temp 60 Degrees C Nameplate RPM 1 075 General Application 60 Hz Full Load Amps 1.9 A Ins. Class B Motor Service Factor 1
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 21.3 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
